EdgeAI-ORN

EdgeAI-ORN – Rugged AI Edge Computer for Industrial Vision & Machine Learning

The Compulab EdgeAI-ORN is a high-performance edge AI computer built for real-world AI, vision, and machine learning applications.
Powered by NVIDIA® Jetson™ Orin Nano or Orin NX modules, it delivers up to 157 TOPS AI performance in a compact, rugged design that operates reliably from -20°C to 75°C.
Ideal for industrial automation, smart cities, robotics, and computer vision, EdgeAI-ORN combines advanced AI processing with multiple high-throughput camera interfaces and rich industrial connectivity.

Key Features

• AI Power – NVIDIA® Jetson™ Orin Nano / Orin NX, up to 157 TOPS.
• Flexible Camera Inputs – PoE 2.5GbE, USB 3.2 Gen 2, GMSL2, FPD Link IV, MIPI CSI-2.
• Industrial Interfaces – Isolated RS-232/485, CAN FD bus, GPIOs.
• Rugged & Reliable – MIL-STD-810G tested, -20°C to 75°C.
• Optional Remote Management – Allxon OOB Enabler-Bolt for remote power cycling, recovery, and diagnostics.
• Thermal Options – Passive cooling or active fan for sustained 40W operation.
• 5-Year Warranty – Long-term product availability and support.

Multiple Camera Interface Options

• USB 3.2 Gen 2 – Connect up to 4 USB cameras at 10Gbps each.
• 2.5GbE with PoE – Power and connect up to 4 PoE cameras (15W per port).
• GMSL2 / FPD Link IV – 4-port deserializer with Power over Coax (PoC).
• MIPI CSI-2 – 4-lane interface for up to 4 cameras.

Built for Industry

• USB 3.2 Gen 2 – Connect up to 4 USB cameras at 10Gbps each.
• 2.5GbE with PoE – Power and connect up to 4 PoE cameras (15W per port).
• GMSL2 / FPD Link IV – 4-port deserializer with Power over Coax (PoC).
• MIPI CSI-2 – 4-lane interface for up to 4 cameras.
• Isolated COM, GPIO, and CAN FD for secure industrial integration.

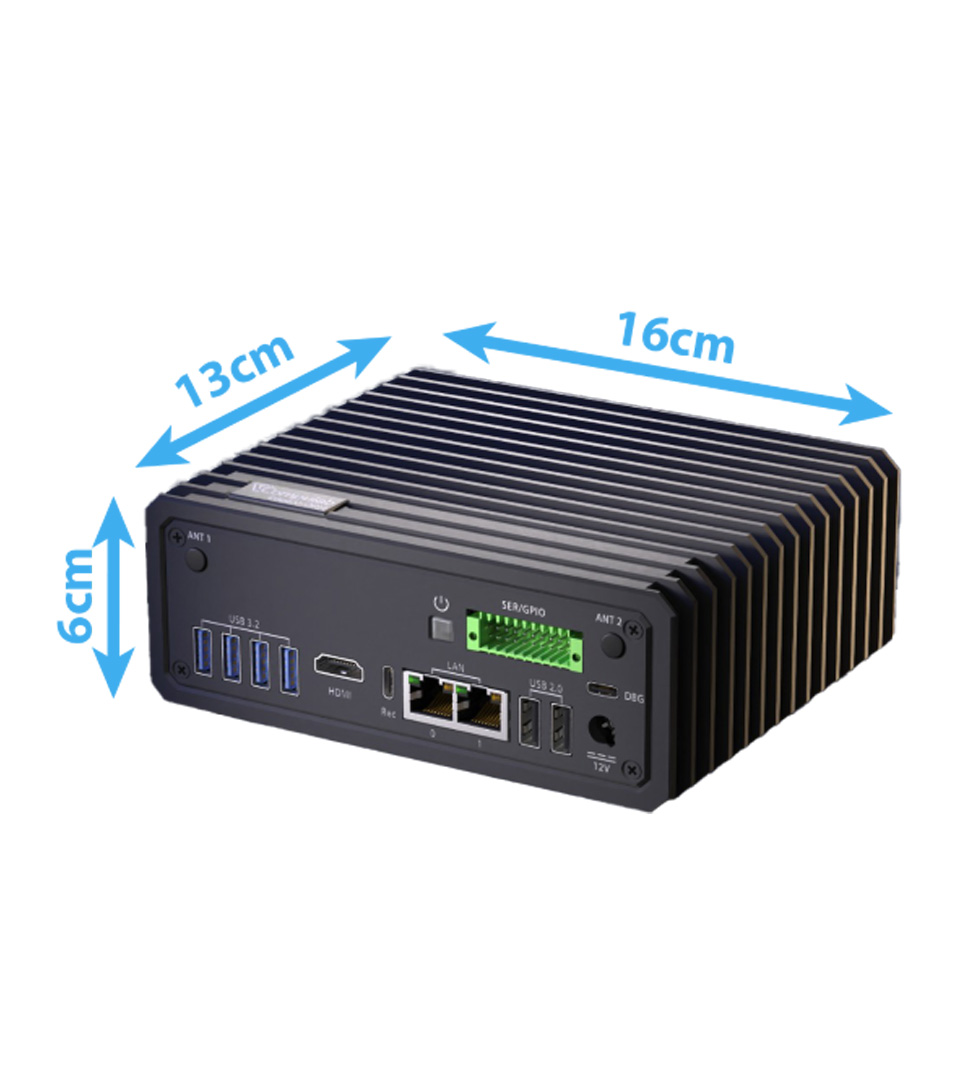

• Compact form factor for space-constrained edge deployments.
• Long-term supply and hardware customization options, including:
  • Custom OS imaging & BIOS defaults.
  • Branding & labeling.
  • SMT-level hardware configuration.
  • Zero-Touch Provisioning (ZTP).

Remote Management & Reliability

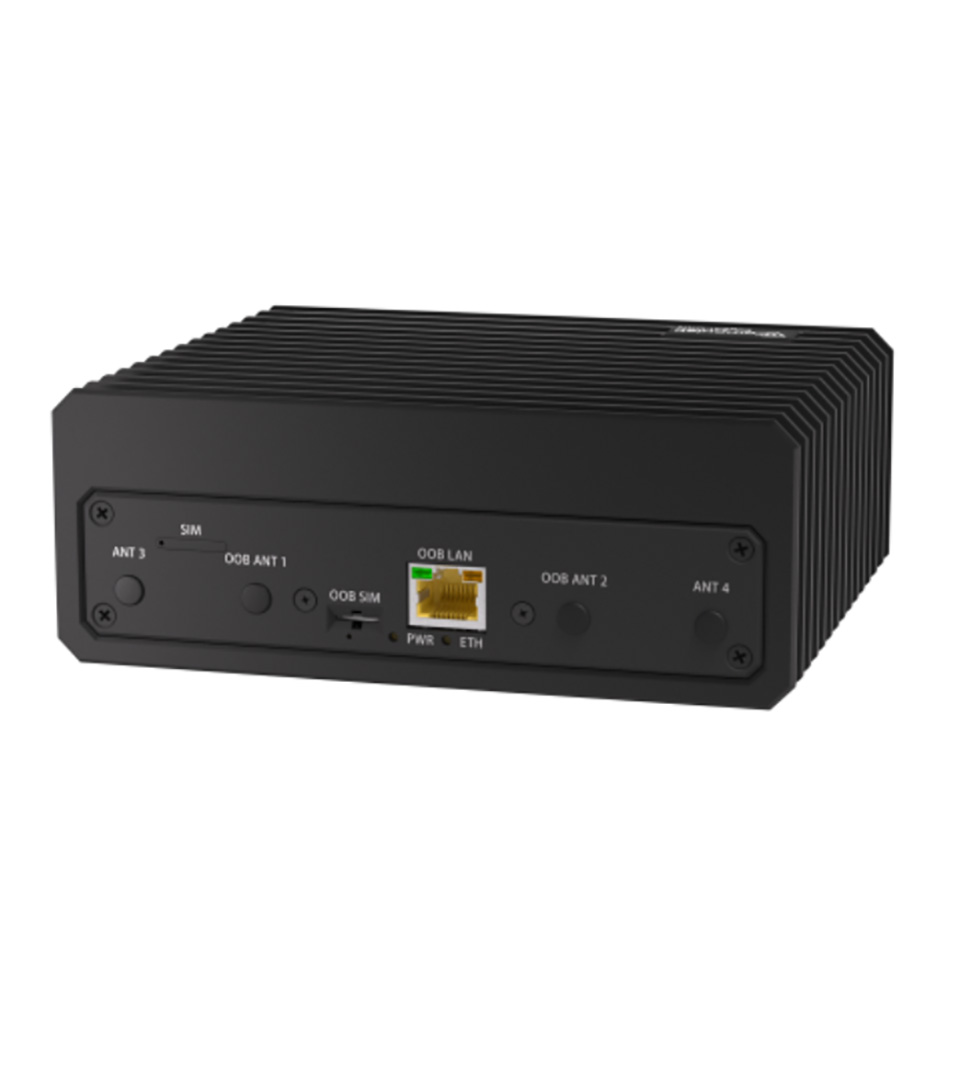

With the optional Allxon OOB Enabler-Bolt, gain remote control even if the OS is unresponsive, enabling:

• Faster recovery from critical failures without on-site visits.
• Reduced downtime & maintenance costs.
• Secure remote updates & controlled access.

We deliver the EdgeAI-ORN fully configured for your project — ready for deployment in AI vision, automation, and IoT edge computing environments.

Applications: Industrial vision, robotics, automated inspection, traffic monitoring, smart retail, AI-based analytics.

Datasheet

EdgeAI-ORN
