IOT-GATE-iMX8
Industrial IoT Gateway optimized for industrial use
IoT Gateways from Compulab: A revolution in industrial IoT
Some of the most requested products at Nord Technology are Compulab’s IoT Gateways products, especially the three newest ones:
-
IOT-DIN-IMX8PLUS IoT Edge Gateway
-
IOT-GATE-IMX8PLUS – Industrial IoT Gateway
-
IOT-GATE-iMX8 – Industrial IoT Edge Gateway
These products represent a new era in industrial IoT with their advanced design, flexibility and reliability.
Flexible and affordable IoT solutions for various industries
Compulab’s IoT Gateways are created with a clear vision: to deliver flexible and affordable IoT solutions without compromising on quality. These devices make it easy to remotely control and monitor systems in many different industries. Whether in manufacturing, energy, transportation or healthcare, Compulab’s IoT Gateways offer the flexibility needed to meet different needs.
Customized IoT solutions – Many configuration options
One of the most impressive features of Compulab’s IoT Gateways is their many configuration options. Customers are free to choose and customize the devices according to their specific needs. This means that each solution can be tailored exactly to the requirements of the individual company. This flexibility ensures that IoT Gateways can be integrated easily into any industrial application.
Secure IoT Gateway – Reliability, durability and high performance
The machines are made of industrial quality materials, which guarantees maximum operational reliability. This makes them perfect for control and monitoring in demanding industrial environments. Their robustness and reliability ensure they can handle even the most challenging conditions, giving businesses the peace of mind knowing their systems will always be up and running.
Industrial IoT solutions -Long-term investment
With an availability of up to 15 years, Compulab’s IoT Gateways represent a long-term investment. Companies can be confident that their IoT solutions will receive continuous support and adaptation over time, ensuring long-term functionality and relevance in a world of constant technological development.
Innovative IoT integration
Compulab’s IoT Gateways are made specifically to help integrate IoT into industrial environments. They offer advanced options for both wireless and wired connectivity, providing a high degree of control and monitoring. Their innovative design enables businesses to harness the full potential of IoT technology, leading to smarter and more efficient work processes.
Industrial IoT Gateways
Here you can read about and compare the three newest Industrial IoT Gateway products from Compulab.
IOT-DIN-IMX8PLUS IoT Edge Gateway
- Helste Specifikationer
- CPU Core
- Memory and Storage:
- Networking
- Connection options
- Electricity and mechanics
- O/S support
- NXP i.MX8M-Plus quad-core CPU
- Up to 8GB RAM, 128GB eMMC
- LTE/4G, WiFi 802.11ax, Bluetooth 5.3
- 2x Ethernet, USB3.0, CAN bus
- 2x Ethernet, USB3.0, CAN bus
Recommended:

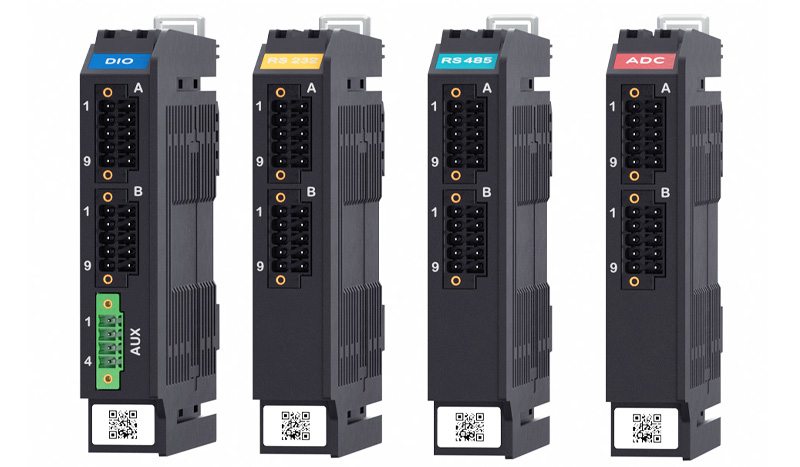

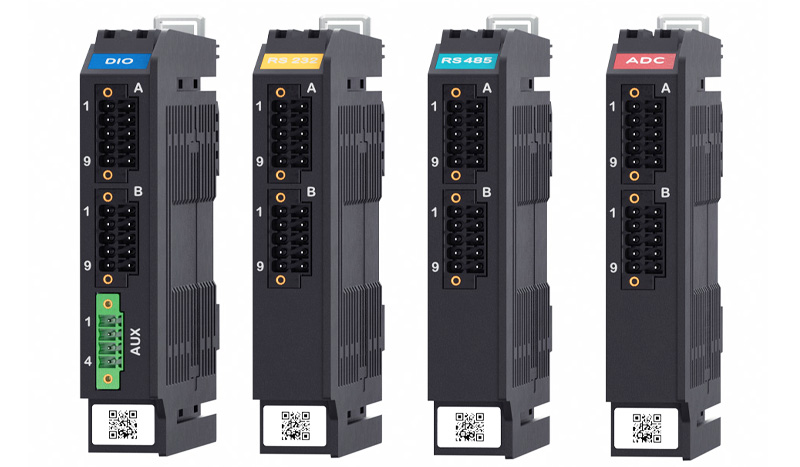

- Stackable I/O expansion modules
- Up-to 12x RS485 / RS232 ports
- Up-to 32x DOUT + 32x DIN
- Up-to 8x ADC inputs
- -30C to 70C temp. range
System-on-Chip
NXP i.MX8M Plus QuadLite (Quad)
CPU Core
4x Cortex-A53, 1.8GHz
GPU
Vivante GC7000UL (3D) and GC520L (2D)
AI/ML Processing Unit
up to 2.3 TOPS
Real-Time Co-processor
Cortex-M7
RAM
1GB – 8GB, LPDDR4
Primary Storage
16GB to 128GB eMMC flash (soldered)
Secondary Storage
Optional M.2 NVMe SSD module (e.g., 256GB)
LAN
2× Gigabit Ethernet ports (RJ45)
WLAN
802.11ax dual antenna
Bluetooth
5.3 BLE
Cellular
LTE CAT4
GNSS
Yes
USB
1x USB3.0
RS485 / RS232
Base – 1× RS485 and 1× RS232 port
CAN bus
1x CAN
Digital I/O
8x outputs + 8x inputs, 24V EN 61131-2
Dimensions (mm)
110 x 95 x 30
Supply Voltage
12V-24V
Active Power Consumption
2.5W – 8W
Temperature Range
-40C to 85C
Linux Kernel
6.1.55
Linux O/S
Debian 12
Yocto
Yocto 5.0
IOT-GATE-IMX8PLUS – Industrial IoT Gateway
- Helste Specifikationer
- CPU Core
- Memory and Storage:
- Networking
- Connection options
- Electricity and mechanics
- O/S support
- NXP i.MX8M-Plus quad-core CPU
- Up to 8GB RAM, 128GB eMMC
- LTE/4G, WiFi 802.11ax, Bluetooth 5.3
- 2x Ethernet, USB3.0, 2x USB2.0, 2x CAN bus
Recommended::
- Up-to 3x RS485 | RS232 and digital I/O
- 8V to 36V DC input, 3-10W
- -40C to 80C temp. range
- Fanless design, rugged housing
System-on-Chip
NXP i.MX8M Plus
CPU Core
4x Cortex-A53, 1.8GHz
GPU
GC7000UL GPU
AI/ML Processing Unit
up to 2.3 TOPS
Real-Time Co-processor
Cortex-M7
RAM
1GB – 8GB LPDDR4
Primary Storage
16GB – 128GB eMMC (soldered)
Secondary Storage
–
LAN
2x 1000Mbps
WLAN
802.11ax, dual antenna
Bluetooth
5.3 BLE
Cellular
LTE CAT4
GNSS
YES
USB
1x USB3.0 + 2x USB2.0
RS485 / RS232
Up-to 3x RS485 | RS232
CAN bus
Up-to 2x CAN
Digital I/O
4x outputs + 4x inputs, 24V EN 61131-2
Dimensions (mm)
132 x 84 x 25
Supply Voltage
8V to 36V
Active Power Consumption
2.5W – 8W
Temperature Range
-40C to 80C
Linux Kernel
5.15.5
Linux O/S
Debian 11
Yocto
Yocto 4.0

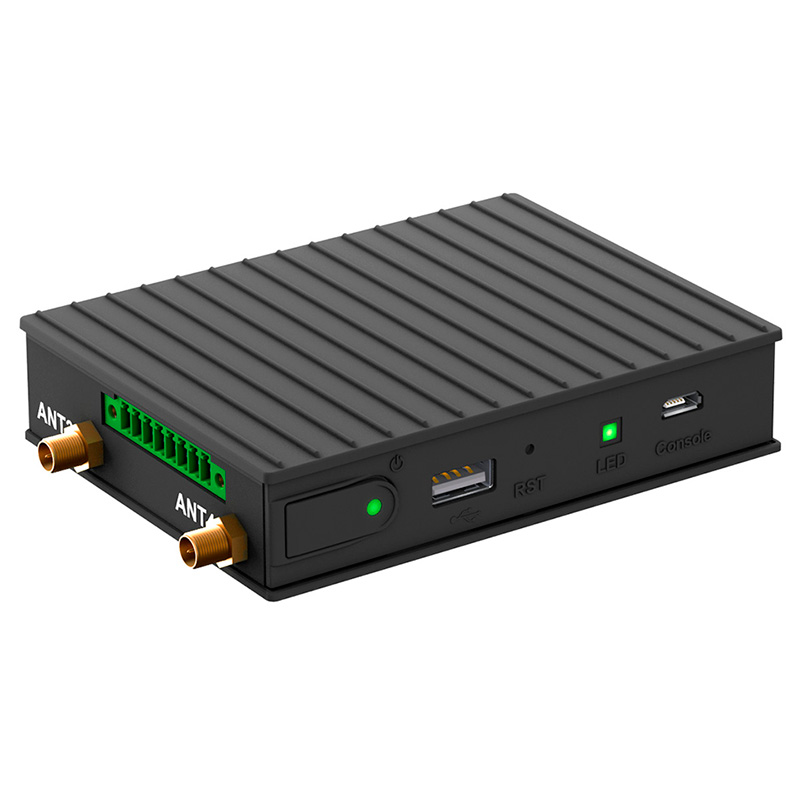

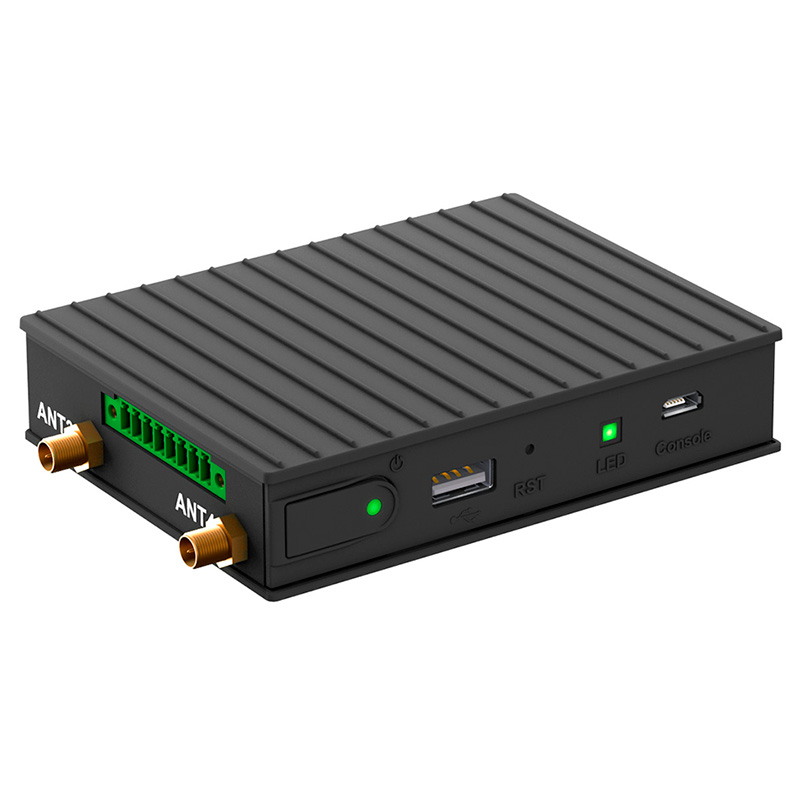

IOT-GATE-iMX8 – Industrial IoT Edge Gateway
- Helste Specifikationer
- CPU Core
- Memory and Storage:
- Networking
- Connection options
- Electricity and mechanics
- O/S support
- NXP i.MX8M-Mini quad-core CPU
- Up to 4GB RAM, 128GB eMMC
- 2x Ethernet, WiFi 802.11ax, BT 5.1
- LTE modem, GPS
Recommended::
- 3x USB2, 3x RS485 / RS232, CAN-FD
- 8V to 36V DC input, 2-7W
- -40C to 80C temp. range
- Fanless design, rugged housing
System-on-Chip
NXP i.MX8M Mini
CPU Core
4x Cortex-A53, 1.8GHz
GPU
–
AI/ML Processing Unit
–
Real-Time Co-processor
Cortex-M4
RAM
1GB – 4GB LPDDR4
Primary Storage
4GB – 64GB eMMC (soldered)
Secondary Storage
16GB – 64GB eMMC module
LAN
1x 1000Mbps + 1x 100Mbps
WLAN
802.11ax, dual antenna
Bluetooth
5.1 BLE
Cellular
LTE CAT1
GNSS
YES
USB
3x USB2.0
RS485 / RS232
Up-to 3x RS485 | RS232
CAN bus
Up-to 2x CAN-FD
Digital I/O
4x outputs + 4x inputs, 24V EN 61131-2
Dimensions (mm)
112 x 84 x 25
Supply Voltage
8V to 36V
Active Power Consumption
2.5W – 8W
Temperature Range
-40C to 80C
Linux Kernel
5.10.72
Linux O/S
Debian 11
Yocto
Yocto 3.3
Evaluation kit
Before purchasing an IoT-Gate-iMX8 product, it is mandatory to purchase an evaluation kit to get started.
IOT-DIN-IMX8PLUS STARTER KIT
The content of the package
- IOTDIN-IMX8P-C1800QM-D4-N32-JEG25G-XL gateway
- 12V power supply with terminal plug adapter
- Mobile antenna
- Mobile Antenna Extender
- USB-cable
IOT-GATE-IMX8PLUS Evaluation Kit
Hardware
- IOTG-IMX8PLUS-C1800QM-D4-N32-WB-JEC25x-FARS4-FBRS2-FDIO-POE-PS-XL-TIC
- Additional two RS485 I/O modules
- Extra two RS232 I/O modules
- Expansion breakout board
- TPM add-on module
- DIN rail mounting bracket
- Wall bracket
- DC Terminal Block Adapter
- DC Y cable
- USB-cable
Note: select eval-kit modem type according to cellular bands required for your region.
Technical Support
- Technical support for 12 months.
- 45-day trial period. The evaluation kit can be returned and refunded if the user finds the product unsuitable for their needs.
Documents and instructions
IOT-GATE-iMX8 Evaluation Kit
Hardware
- IOTG-IMX8-D4-NA32-WB-JS7600G-FARS4-FBCAN-PS-XL-TIC
- 2x WiFi antenne
- Cellular antenna
- IOTG-ACC-M2SD SD card adapter
- Additional RS232 add-on module
- Additional RS485 add-on module
- DC Y cable
- USB-cable
- DIN rail mounting bracket
- Wall mounting bracket
Technical Support
- Technical support for 12 months.
- 45 day trial period. The evaluation kit will be accepted for refund if the user finds the product not suitable for his needs.
Documents and instructions
VIDEO: Introduction of the IOT-DIN-IMX8PLUS Industrial Gateway
VIDEO: CompuLab – Manufacturer of system on modules, IoT gateways, industrial PCs
Compulab IOT-GATE-iMX8 in our projects
The IOT-GATE-iMX8 is already in use across a wide range of industries. This IoT Gateway has found its place in a spectrum of sectors – from agriculture to healthcare, warehouse management and the security industry. It is the core of some innovative projects we work on, including blade monitoring solutions on wind turbines and precision data collection for asphalt machines. It also plays a key role in the development of advanced charging systems for service robots that support operations across Europe. This product has proven to be an ideal choice for companies looking to integrate IoT solutions to optimize the efficiency of their operations.
IOT-GATE-iMX8 is used for monitoring-solutions on wind turbines | Image: Polytech
Get in touch
If you need more information, you are always welcome to send us a message or call.
Feel free to call Tel. +45 7027 0415
Or write to us: email@nordtechnology.dk
Kevin Peter Gade
Nord Technology makes tailor-made solutions for your company
At Nord Technology, we specialize in creating customized solutions that meet the unique needs of companies across various sectors. Our expertise lies in working closely with our customers to identify and develop precisely the solutions that will optimize their operations. Our approach ranges from the fine-tuning of existing products to the development of completely customized systems, designed with regard to specific application areas, environmental requirements, and maintenance needs. A key product in our arsenal is the IOT-GATE-iMX8, which plays a central role in an increasing number of projects. The possibilities of usage for the application continue to expand, which also shows our commitment to exploiting advanced technology to deliver flexible and robust solutions.
From our production, we work with customized solutions – we enrich hardware
Order an imx8 product
Before you can buy iMX8 product:
-
- First, your project must be registered and in this connection we need information from you.
- It is mandatory to purchase an evaluation kit to begin with, which includes 12 months of technical support as well as a trial unit for testing purposes.
After we receive the information from you, we will send you a quote for the test unit ASAP.
Please complete and submit this form to register the project and to purchase an evaluation kit.
