UCM-iMX95 – NXP i.MX 95 System-on-Module

UCM-iMX95 System on Module – Advanced NXP i.MX95 SoM for demanding industrial and embedded applications

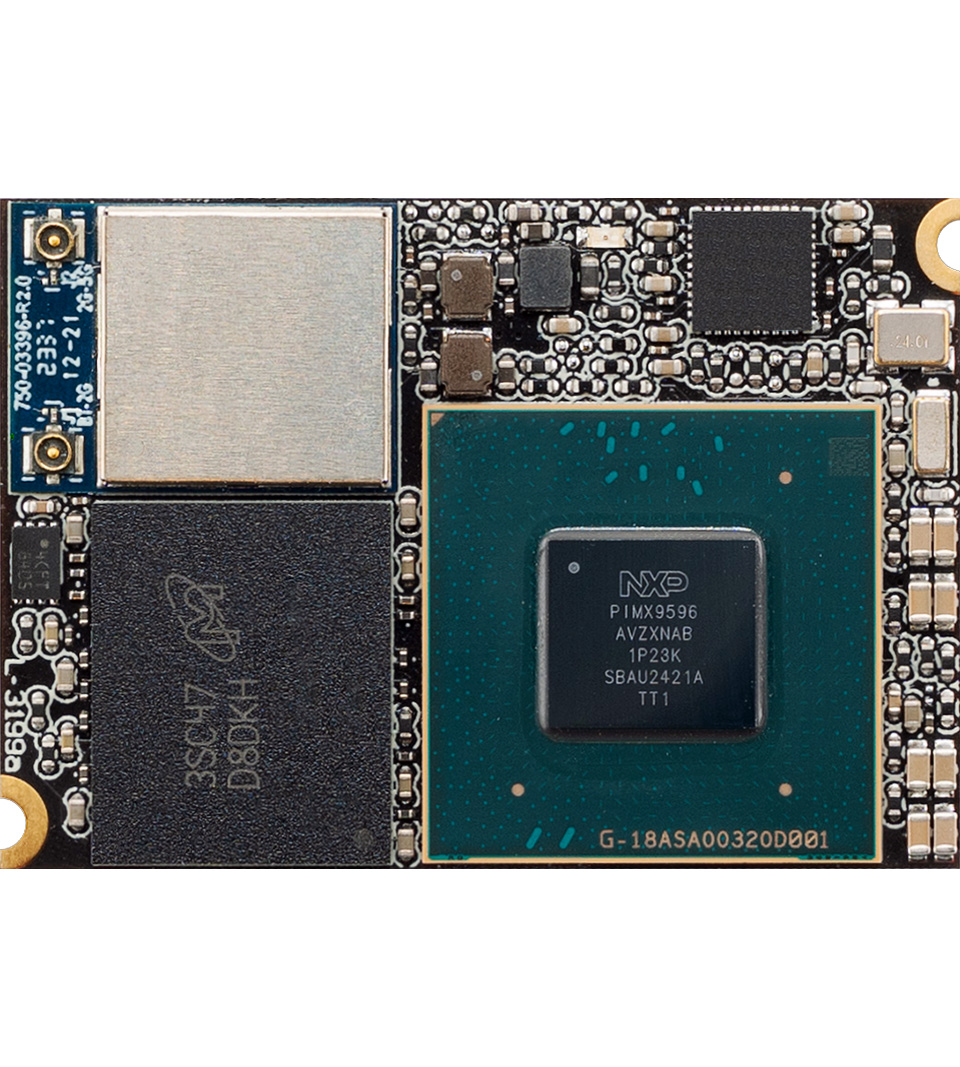

UCM-iMX95 from CompuLab is an ultra-compact and high-performance System-on-Module (SoM), designed for the next generation of industrial, medical, and embedded solutions. The module is built on the NXP i.MX95 processor and combines 6× Arm® Cortex®-A55 CPU cores with a powerful ARM Mali GPU, AI/ML NPU, and a real-time Cortex-M7 MCU – all packed into a footprint of just 28 × 40 mm and 10 grams.

With up to 16 GB LPDDR5 RAM and 128 GB eMMC storage, the UCM-iMX95 delivers a unique combination of performance, energy efficiency, and flexibility. The module is optimized for graphics, image processing, and edge-AI applications, and its wide range of interfaces makes integration straightforward in both advanced industrial systems and space-constrained designs.

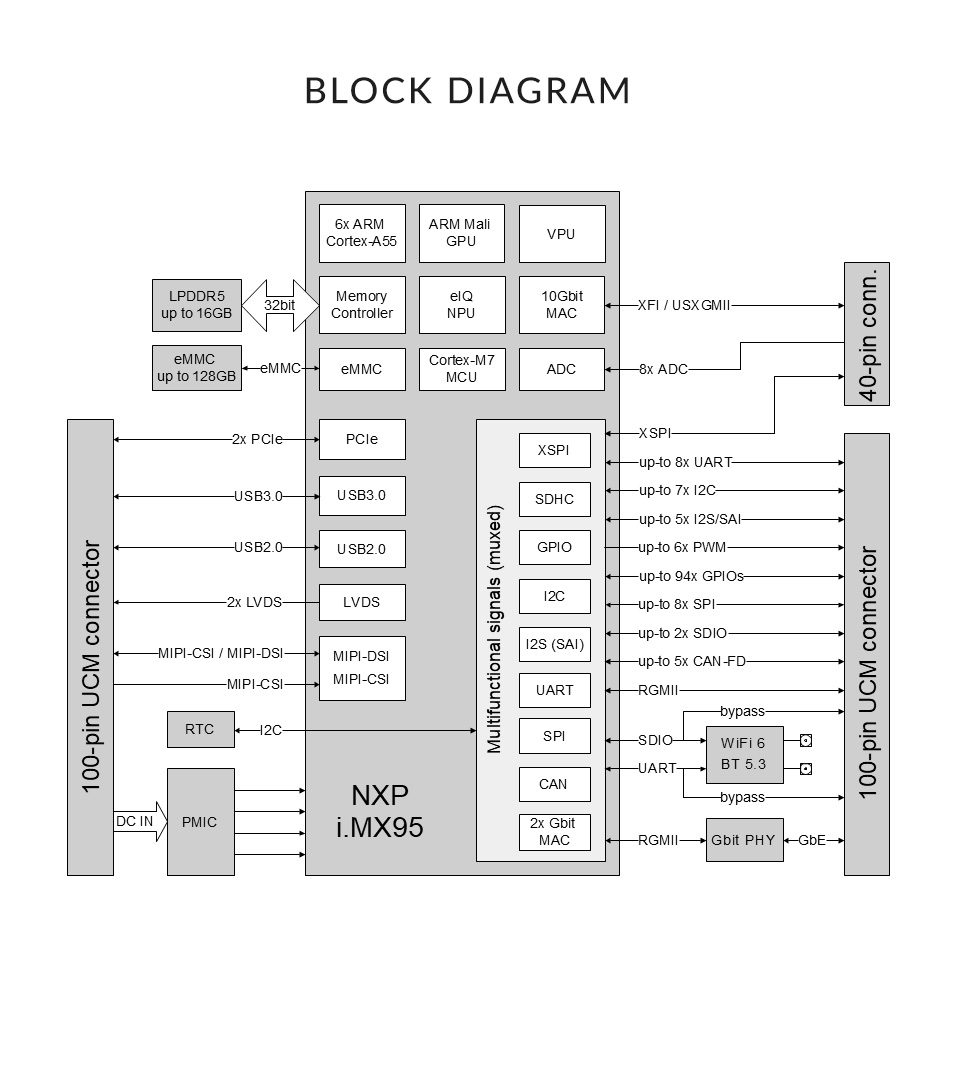

Key Features

• NXP i.MX95 Arm® Cortex®-A55 6-core CPU op til 2.0 GHz
• ARM Mali GPU, 4K VPU and AI/ML NPU
• Up to16 GB LPDDR5 and 128 GB eMMC
• Real-time Arm Cortex-M7 MCU
• Ultra-compact form factor: 28 × 40 mm, weight 10 g
• Interfaces: GbE + 10GbE, RGMII, 2× PCIe, USB 3.0
• Display/Camera: 2× LVDS, MIPI-DSI, 2× MIPI-CSI
• Wireless: Certified Wi-Fi 6 (802.11ax) and Bluetooth 5.3
• 5× CAN, 8× UART, 8× SPI and 94× GPIO
• Temperature range: -40 °C to +85 °C

Software and Development Support

The UCM-iMX95 comes with a full Board Support Package (BSP) and pre-built images. It supports Mainline Linux, Yocto Project, RTOS, and U-Boot, as well as modern IoT technologies such as Docker, MS Azure IoT, Node-RED, and OTA updates via Mender.

Design assistance and carrier boards – in partnership with CompuLab

Som officiel forhandler arbejder Nord Technology tæt sammen med Compulabs egne udviklings- og supportteams. Det betyder, at vores kunder får adgang til:

• Complete carrier board design package (schematics, BOM, PCB layout)
• Direct technical support from CompuLab engineers
• Free design review and driver adaptation for custom LCD panels
• Fast and automated carrier board manufacturing – with no NRE fees
• Flexible ordering options: from a single module to mass production

Ideal Applications

• Industrial control systems and machine vision
• Medical equipment and imaging diagnostics
• Edge-AI gateways and IoT solutions
• Human-machine interfaces (HMI)
• Communication and security systems

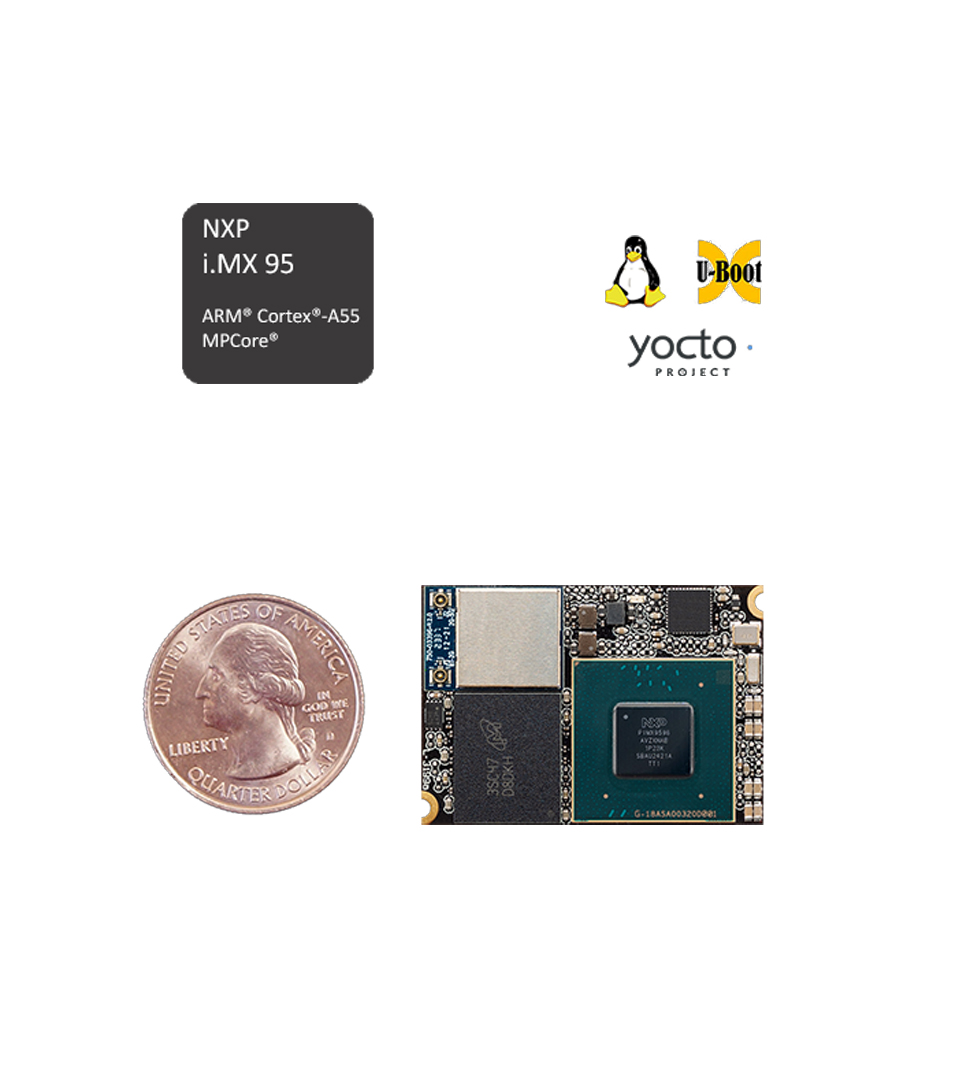

Specifications

UCM-iMX95 System on Module

Buy evaluation kit on Nord Technology Shop

UCM-iMX95 Evaluation Kit
