WPPC-H1520T(P) – Waterproof Industrial Panel PC

WPPC-H1520T(P) from JHCTECH

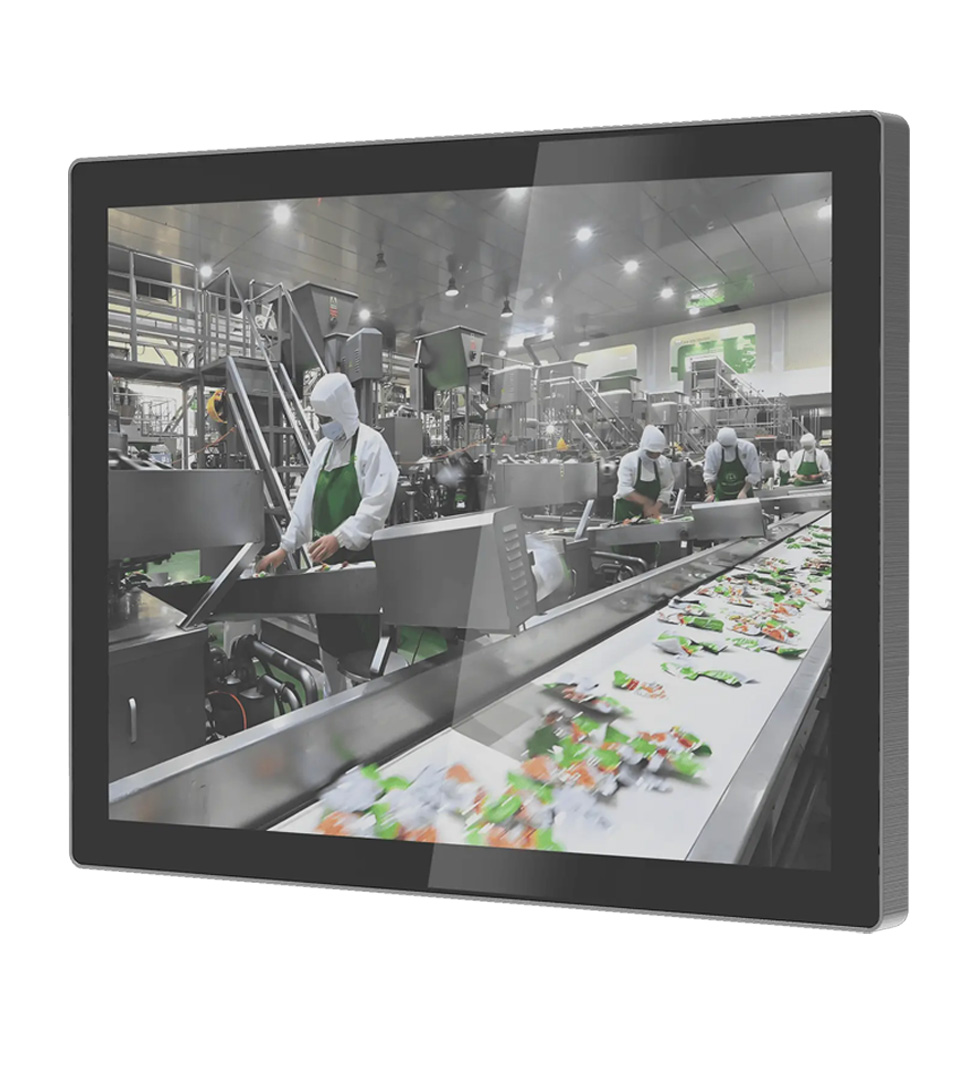

15" Waterproof stainless steel industrial panel PC

WPPC-H1520T(P) from JHCTECH is a fully sealed industrial Panel PC designed for environments where hygiene, cleaning, and operational reliability are essential. The system combines a 15" XGA touchscreen with Intel® Twin Lake or Tiger Lake U processor in a fanless stainless steel chassis (SUS304 – SUS316 as an option).

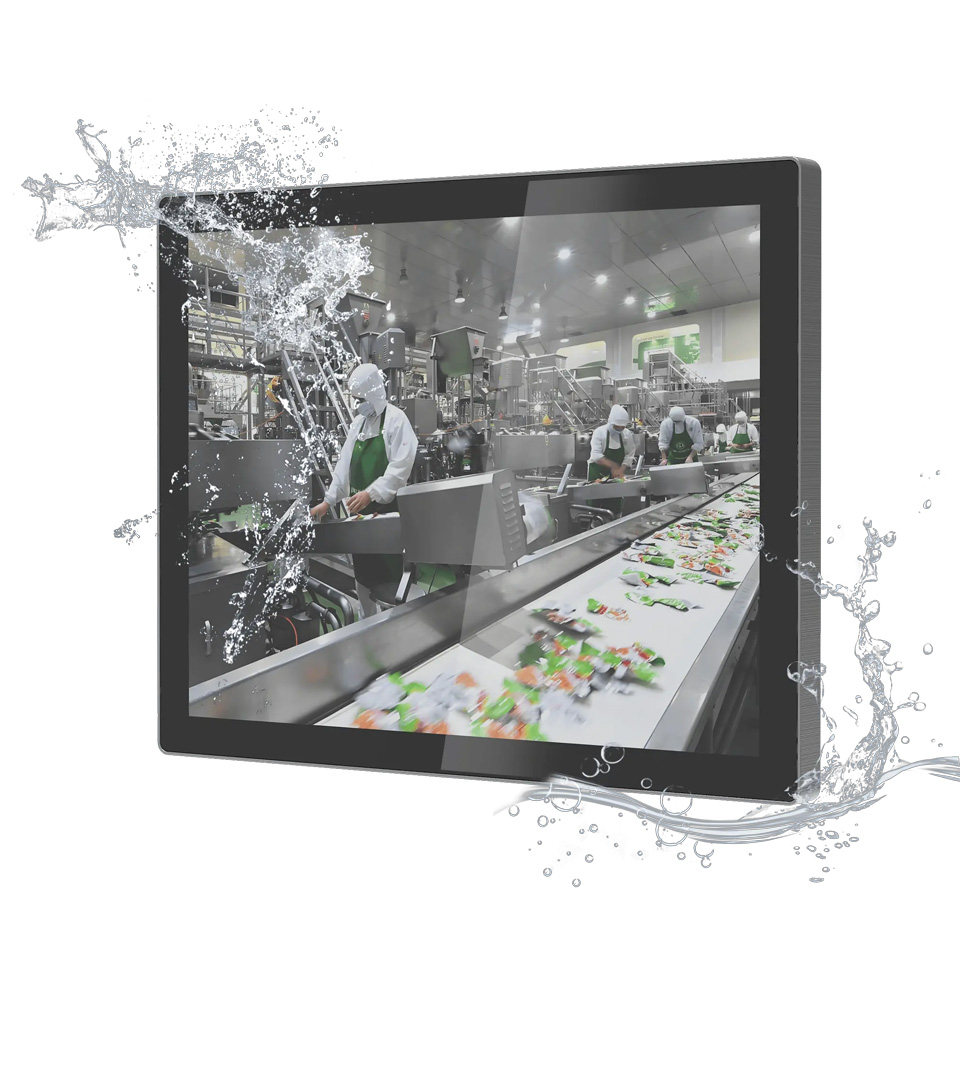

With full IP66 and IP69K protection, the unit withstands high-pressure cleaning, moisture, dust, and aggressive detergents, making it particularly suitable for food production, pharmaceutical manufacturing, chemical processing, and other demanding industrial environments.

Designed for 24/7 operation in harsh environments

The fanless design eliminates moving parts and reduces the risk of failures caused by dust and moisture. All external connections are routed via industrial M12 connectors, ensuring stable communication even under vibration and frequent cleaning.

The touchscreen with projected capacitive technology provides precise operation, even with gloves, making the panel ideal as an HMI terminal close to the production line.

Key Features

Display & Operation

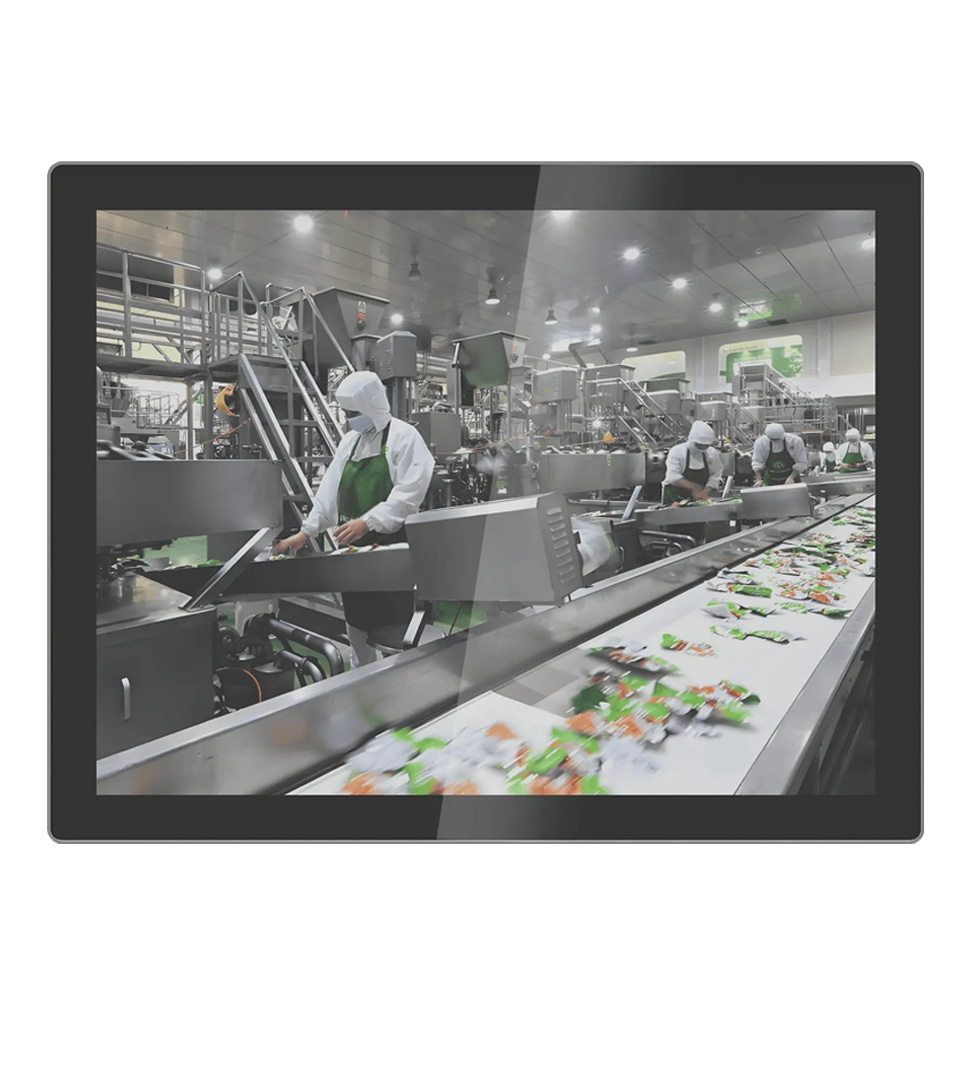

• 15" TFT XGA (4:3) LCD
• Capacitive multitouch (PCAP) - durable glass front
• High readability in industrial environments

Platform

• Intel® Twin Lake / Tiger Lake U-processor
• Up to 32 GB DDR4 3200 MHz SODIMM
• Fanless design for continuous operation

Enclosure

• Stainless steel SUS304 (SUS316 optional)

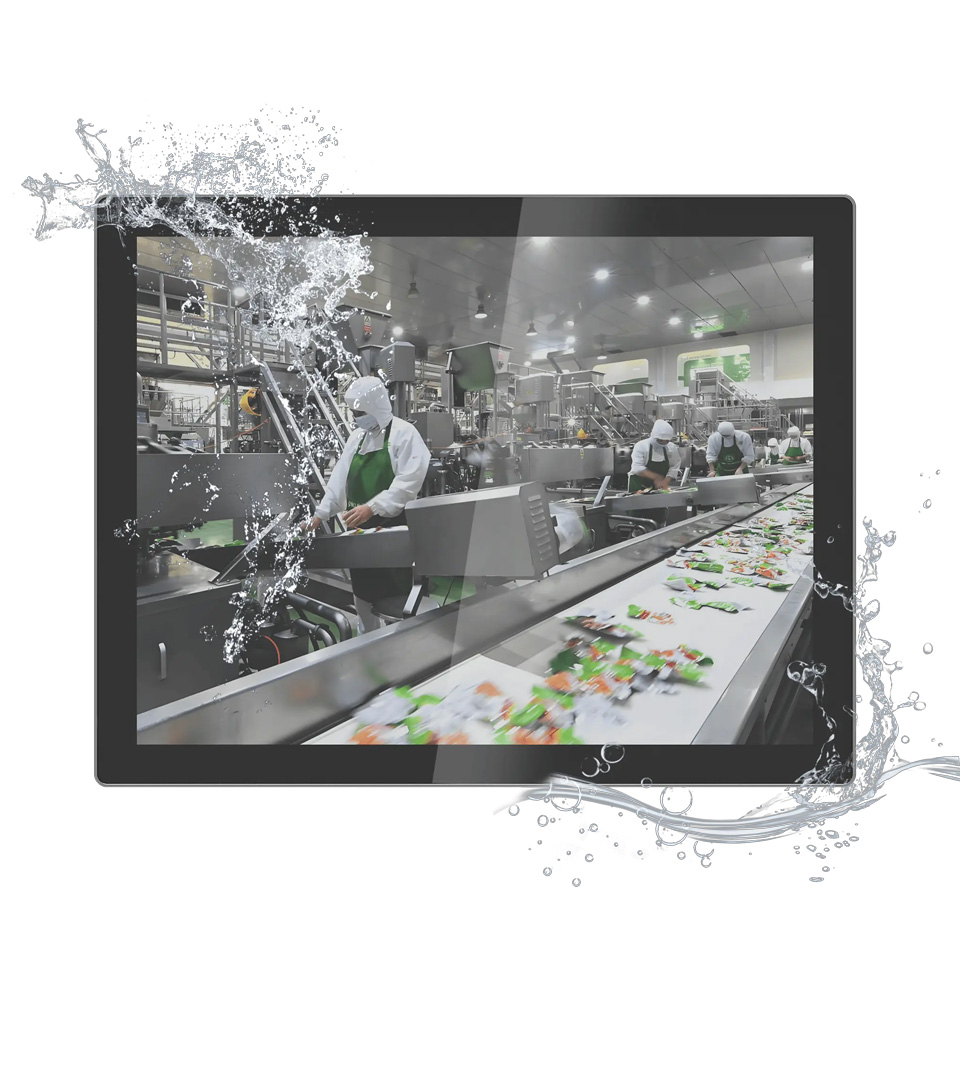

• Full IP66/IP69K - withstands high-pressure cleaning
• Hygienic design without dust-trapping edges

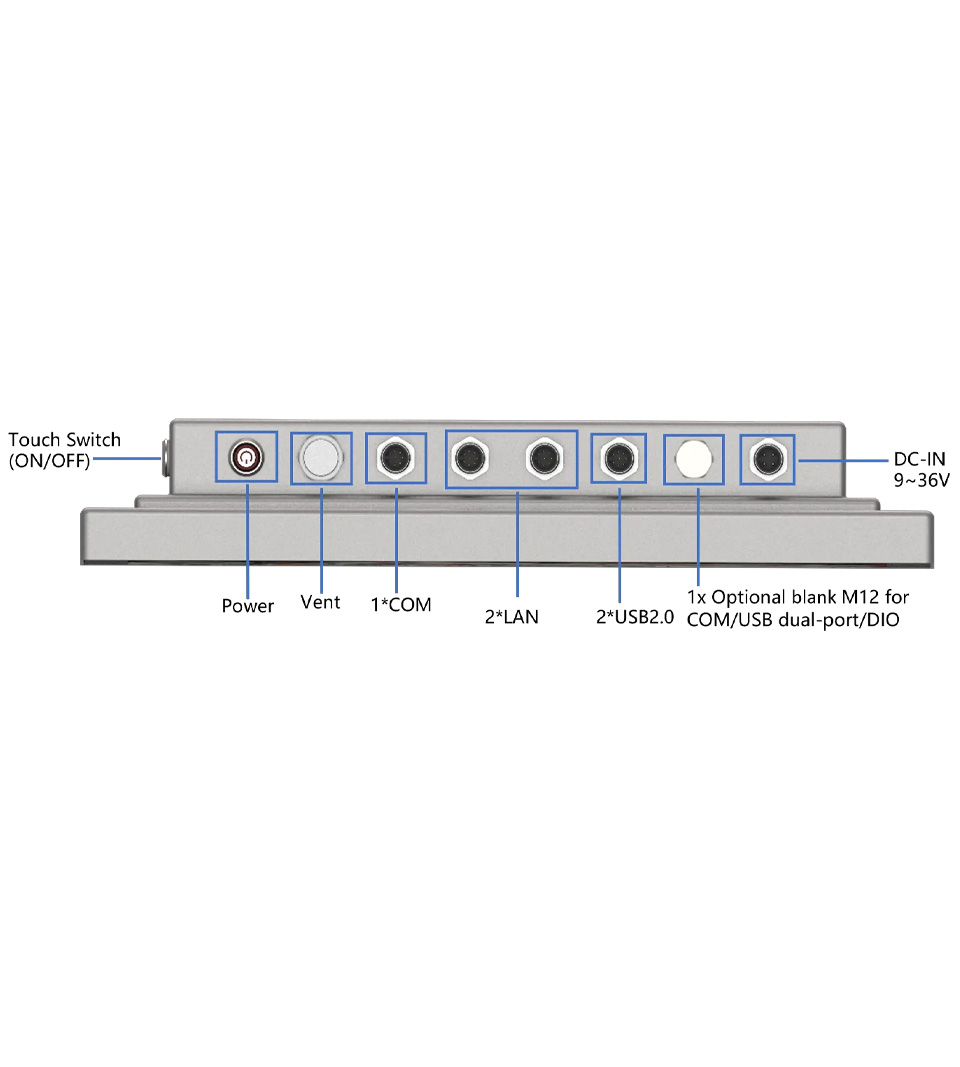

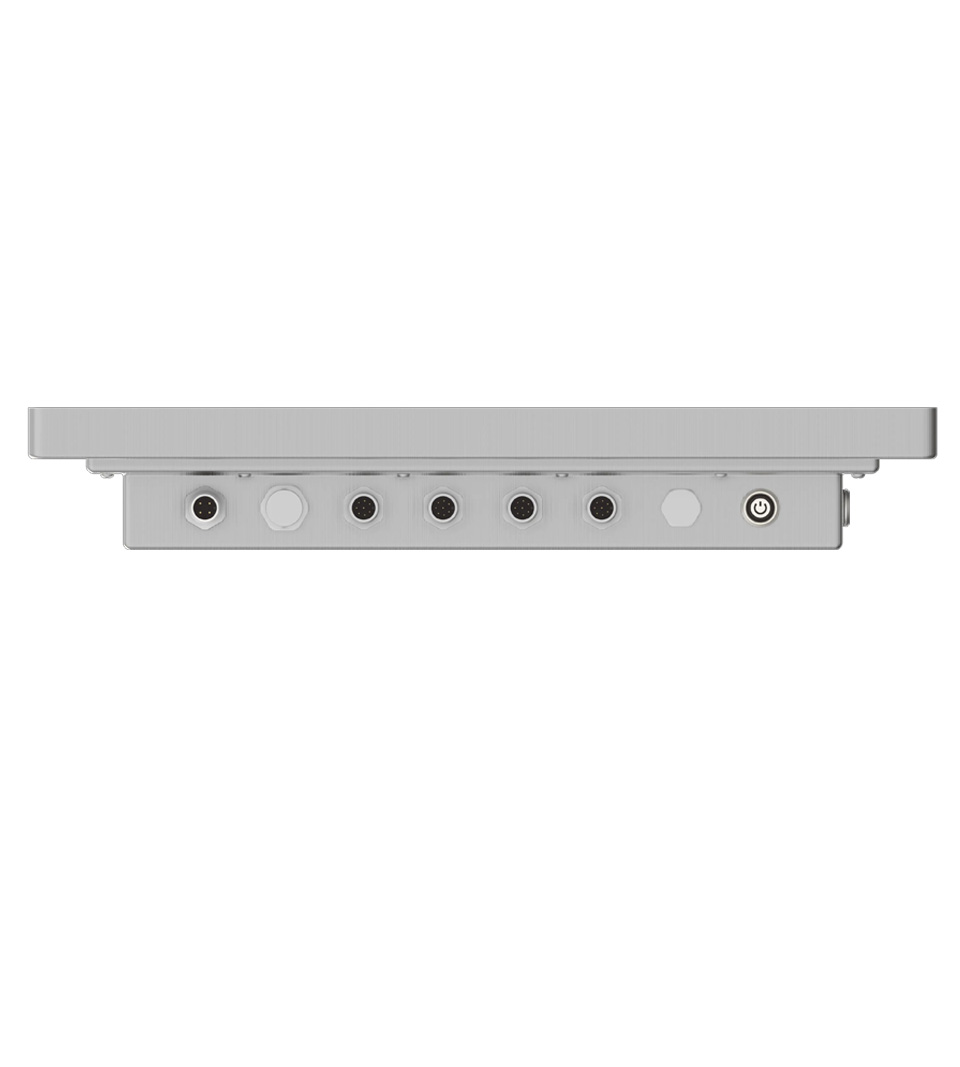

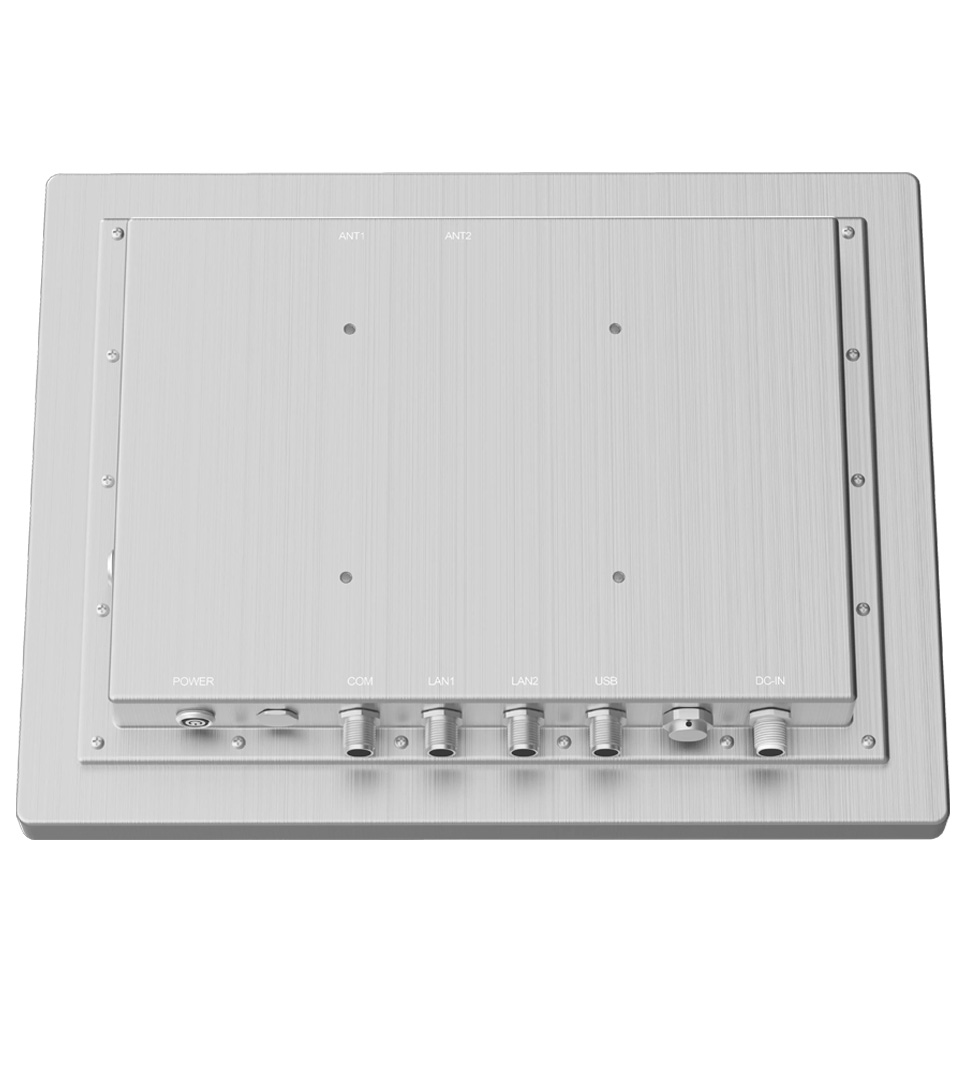

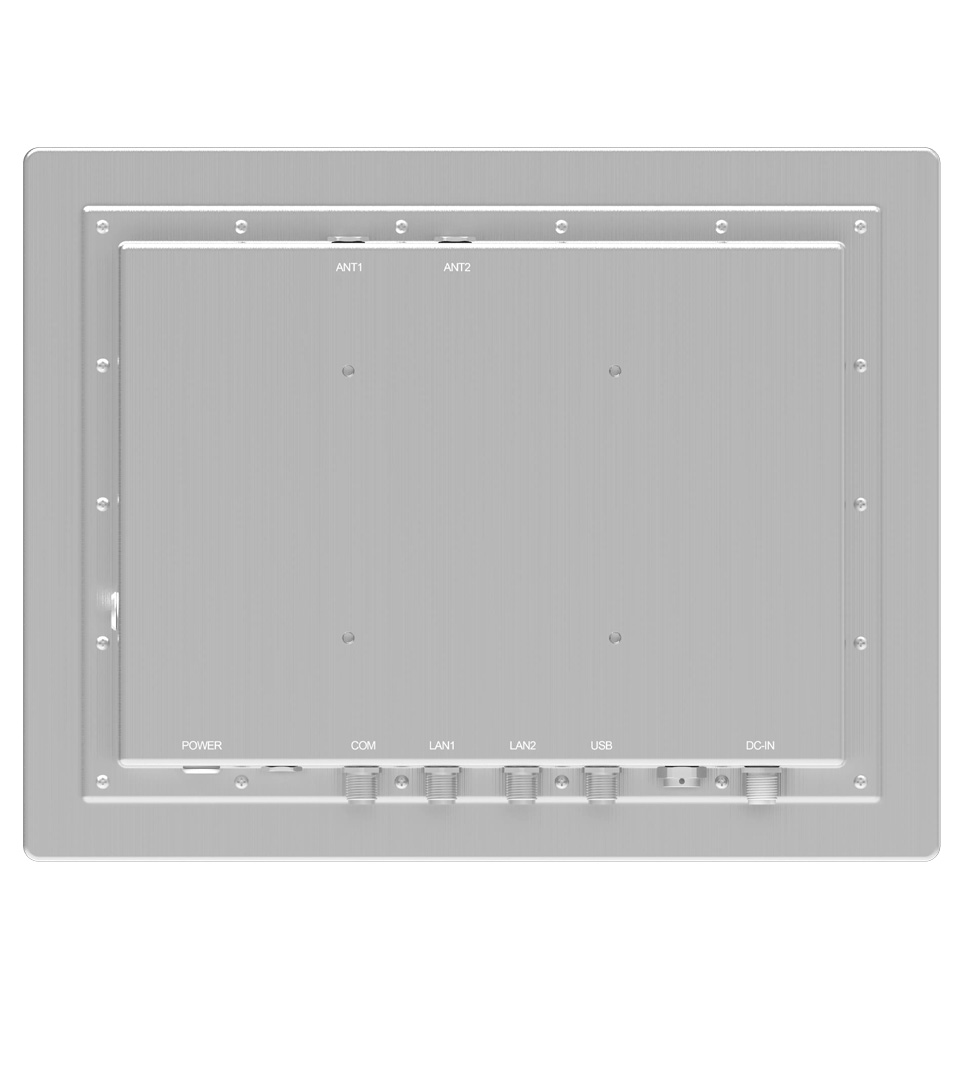

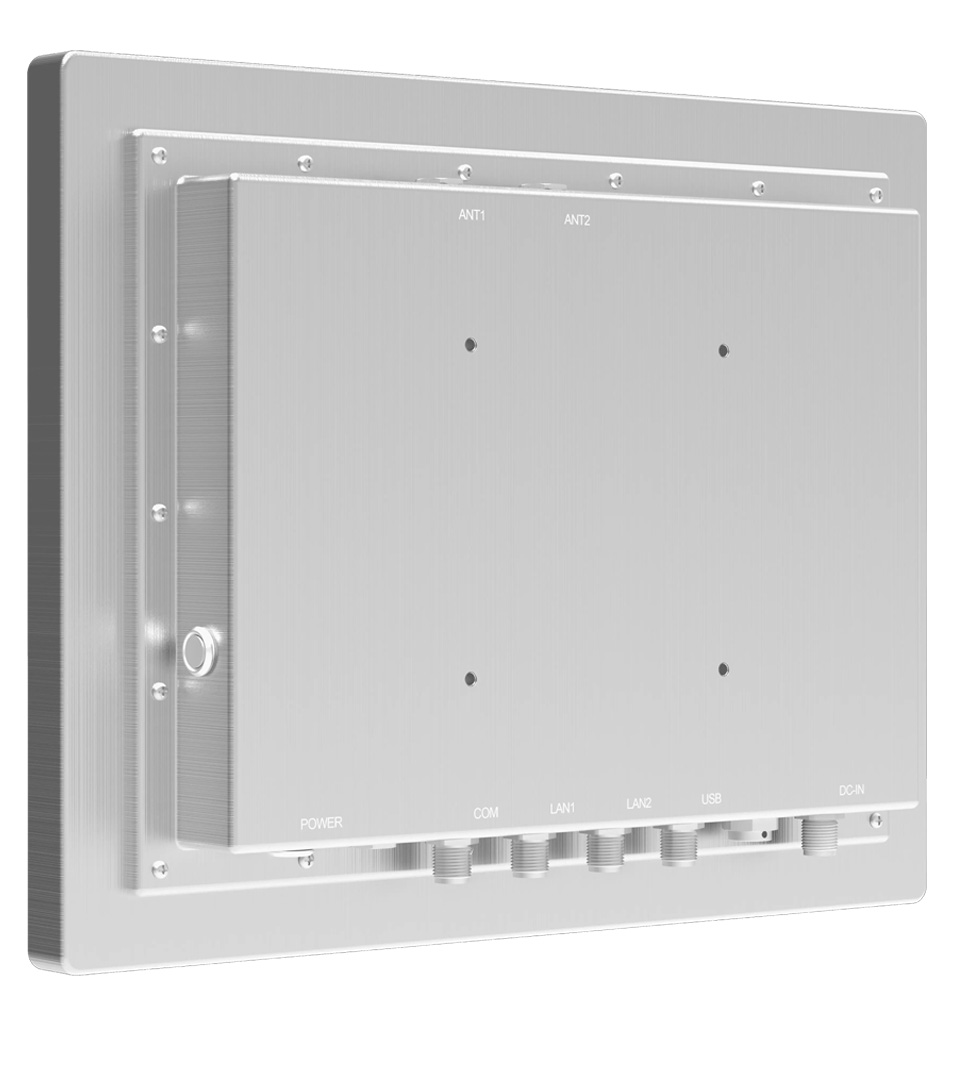

Connections (via M12)

• 2 × Gigabit LAN
• 2 × USB 2.0
• 1 × COM
• 8-bit DIO (optional)
• MiniPCIe + M.2 B-Key for communication modules
• M.2 2280 M-Key and mSATA for storage

Power & Mounting

• Wide input range 9–36V DC
• Panel mount and VESA compatible

Ideal for

• Food and beverage production
• Pharmaceutical and chemical industries
• Process and machine control
• Hygiene-critical HMI solutions
• Semi-outdoor installations with moisture and cleaning exposure

Datasheet

WPPC-H1520T(P)
