SBC-IOT-LINK – NXP i.MX93 Single Board Computer

SBC-IOT-LINK – NXP i.MX93 – Compact and cost-effective Single Board Computer for industrial IoT solutions

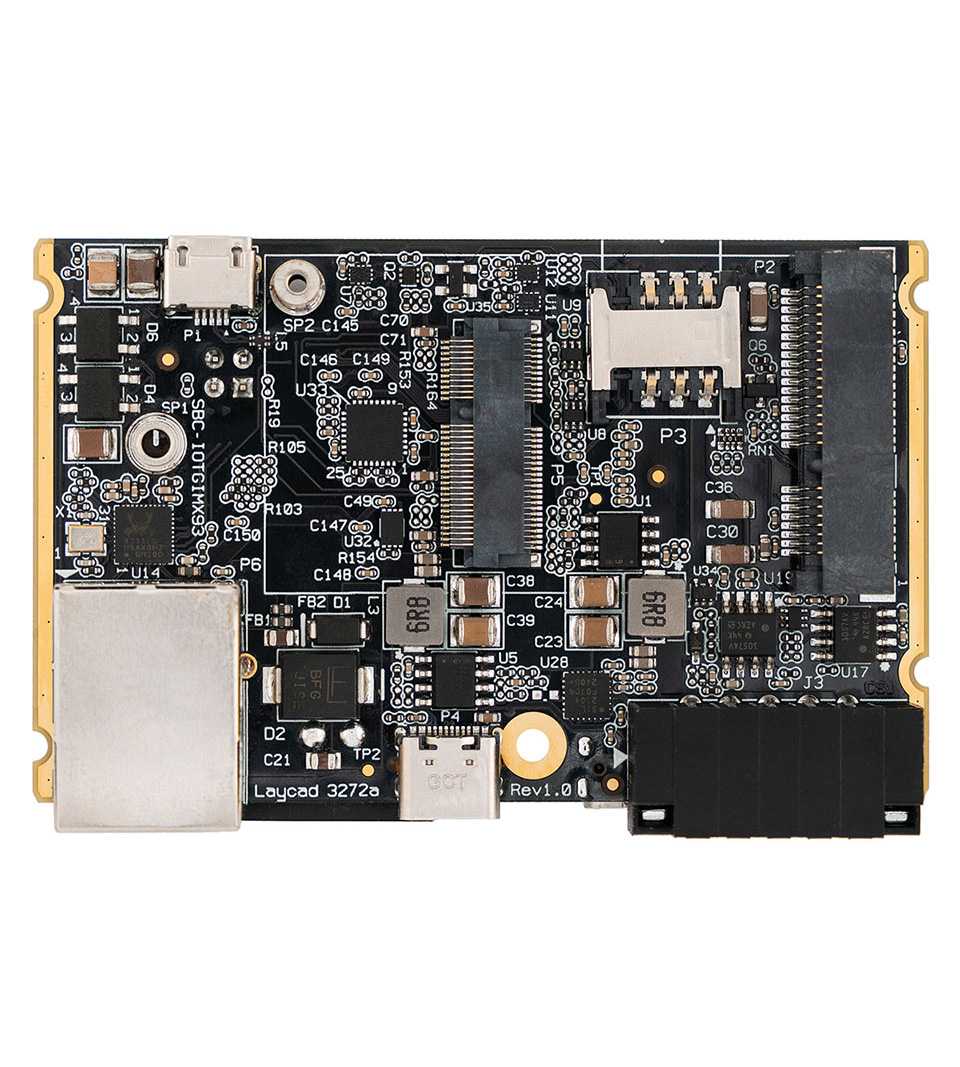

SBC-IOT-LINK from CompuLab is a robust and versatile Single Board Computer (SBC) based on the NXP i.MX93 processor. Featuring a dual-core Arm® Cortex®-A55 CPU, up to 2 GB RAM, and 64 GB eMMC, it combines energy-efficient performance with flexible wired and wireless connectivity. The board supports LAN, Wi-Fi, Bluetooth Mesh, Thread, Zigbee, and a worldwide LTE modem, making it ideal for industrial IoT applications, edge computing, and cost-sensitive systems.

Features and Benefits

• NXP i.MX93 dual-core Cortex®-A55 CPU
• Up to 2 GB RAM and 64 GB eMMC storage
• LAN, Wi-Fi, and worldwide LTE modem
• 2× RS485 / CAN-FD and 3× Digital Input/Output
• Bluetooth Mesh, Thread and Zigbee
• Industrial temperature range: -40 °C to +80 °C
• Designed for 24/7 operation with Secure Boot, TPM, and Hardware Watchdog
• 5 year warranty and 15 year availability

Software and Development Support

The SBC-IOT-LINK comes with a full Board Support Package (BSP) and pre-built images. It supports Debian Linux, Yocto Project, and U-Boot, along with modern IoT tools such as Docker, MS Azure IoT, Node-RED, and OTA updates via Mender.

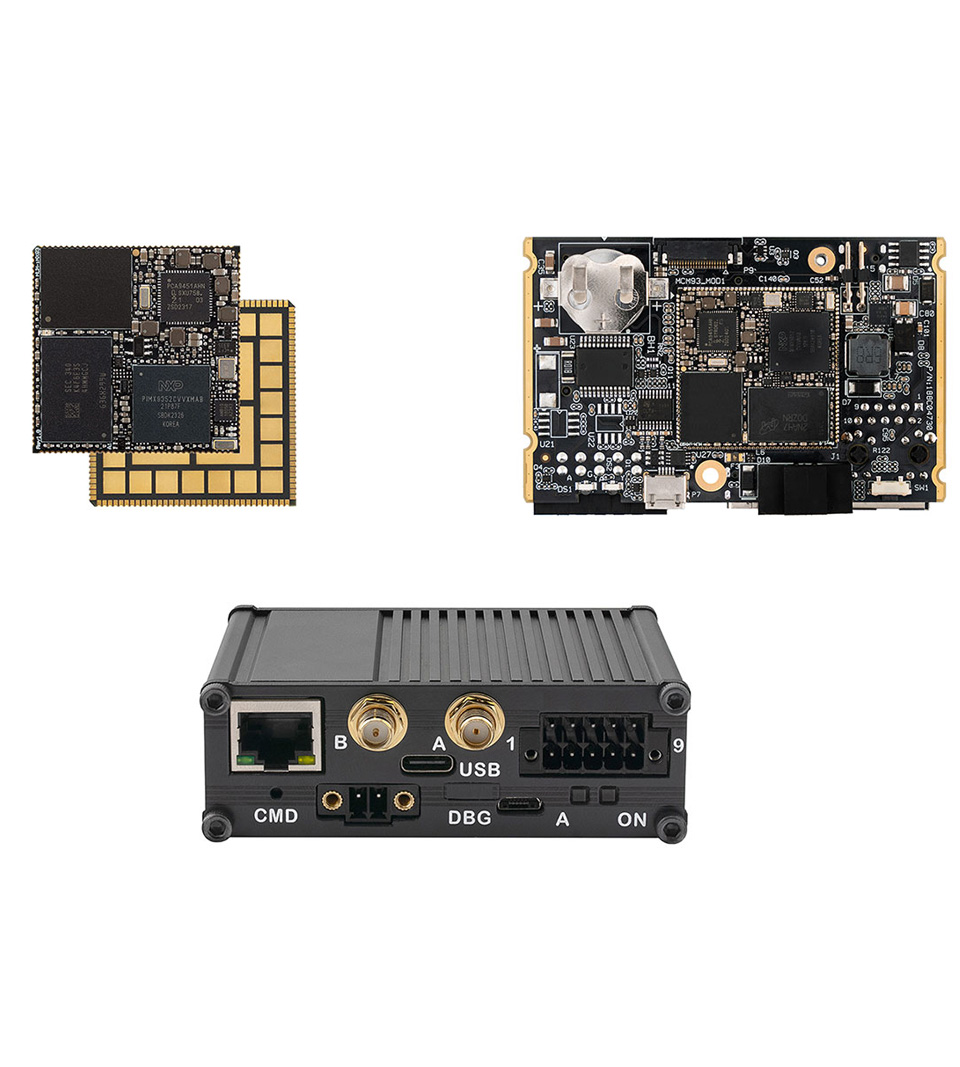

Flexible platform – multiple form factors

The SBC-IOT-LINK shares its CPU and software stack with other products in CompuLab’s i.MX93 family, allowing customers to choose the form factor that best fits their project:

• IOT-LINK Gateway – for rapid deployment with minimal integration
• Single Board Computer – for flexible mechanical integration

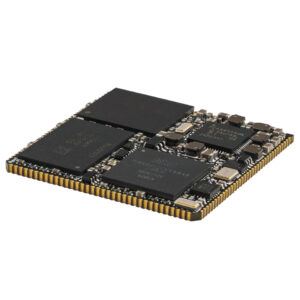

• MCM-iMX93 System-on-Module – for a fully customized design

Ideal Applications

• Industrial control and monitoring
• Edge computing and IoT gateways
• Automation solutions with high uptime
• Cost-sensitive designs with long-term availability requirements

Specifications
